Flexline 线性灯

Flexline 线性灯

  • Flexline 线性灯
  • Flexline 线性灯
  • Flexline 线性灯
  • Flexline 线性灯
  • Flexline 线性灯

产品概览

Flexline 是新设计的线性灯，尺寸 50×75 mm。采用模块化设计 + 5 种光学透镜可选，兼顾库存订单与项目订单需求。
现代经典外观，安装灵活，型材为精细纹理粉末喷涂铝 + 压铸端盖，相信会是您的选择。

产品特性

  • CCT：3000 / 4000 / 5000K 或 CCT 可调
  • 调光：不可调 / 1-10V / DALI
  • 端盖颜色：银 / 白 / 黑
  • 质保：5 年

技术参数

  • 电压：AC220-240V
  • 尺寸：50mm

应用场景

  • 办公与教育（接待区、柜台）
  • 零售与酒店（酒店、餐厅）

安装方式

  • Flexline 线性灯

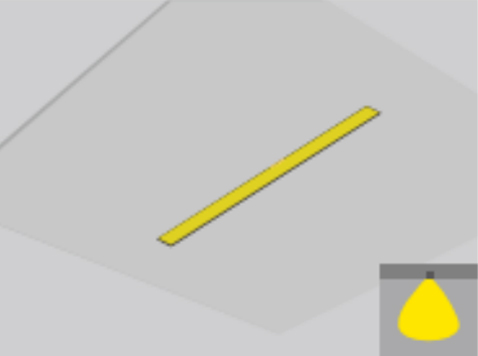

    无框嵌入式

  • Flexline 线性灯

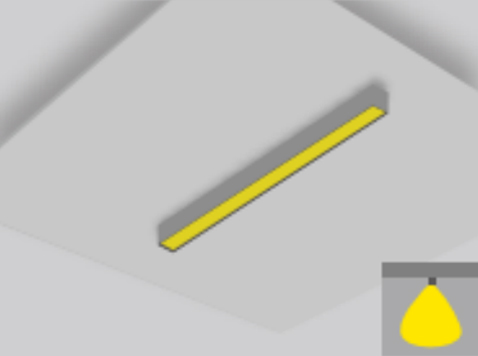

    吸顶式

  • Flexline 线性灯

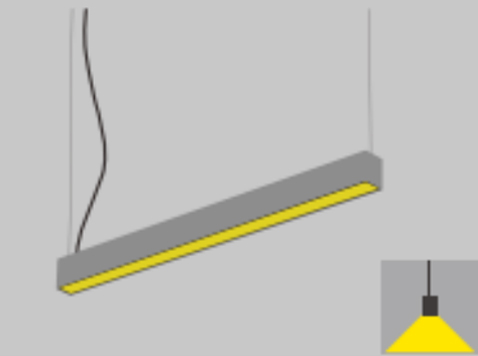

    吊装纯下打

  • Flexline 线性灯

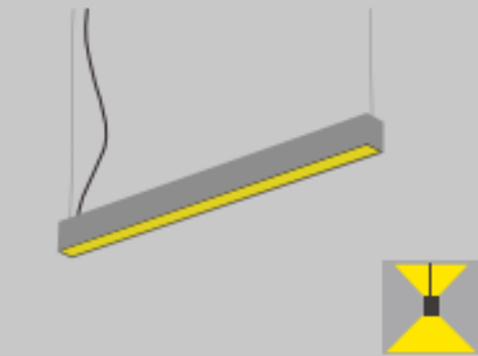

    吊装上下出光

产品筛选器

使用筛选器找到合适的产品系列，探索旗下具体款式

尺寸

请选择
  • 1200mm
  • 1500mm

分布

请选择
  • Directct
  • Directct/Indirect

功率

请选择
  • 30w
  • 40w
  • 50w

光通量

请选择
  • 3300LM
  • 4200LM
  • 2000LM↑+2800LM↓
  • 2400LM↑+3600LM↓
  • 3000LM
  • 4000LM
  • 2000LM↑+2520LM↓
  • 2400LM↑+3150LM↓

CCT

请选择
  • 3000K
  • 4000K

调光

请选择
  • Non
  • DALI

颜色

请选择
  • White
  • Black
  • Silver

反光罩

请选择
  • Microprismatic/Opal
  • Louvre/Grille

项

产品 型号 尺寸 分布 功率 光通量 CCT 调光 颜色 反光罩 下载 预览
FLN-DR120030-30K-WH-Non 1200mm Directct 30w 3300LM 3000K Non White Microprismatic/Opal
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3300LM 4000K Non White Microprismatic/Opal
FLN-DR120030-30K-WH-DALI 1200mm Directct 30w 3300LM 3000K DALI White Microprismatic/Opal
FLN-DR120030-40K-WH-DALI 1200mm Directct 30w 3300LM 4000K DALI White Microprismatic/Opal
FLN-DR120030-30K-BL-Non 1200mm Directct 30w 3300LM 3000K Non Black Microprismatic/Opal
FLN-DR120030-40K-BL-Non 1200mm Directct 30w 3300LM 4000K Non Black Microprismatic/Opal
FLN-DR120030-30K-BL-DALI 1200mm Directct 30w 3300LM 3000K DALI Black Microprismatic/Opal
FLN-DR120030-40K-BL-DALI 1200mm Directct 30w 3300LM 4000K DALI Black Microprismatic/Opal
FLN-DR120030-40K-SL-Non 1200mm Directct 30w 3300LM 4000K Non Silver Microprismatic/Opal
FLN-DR120030-30K-SL-Non 1200mm Directct 30w 3300LM 3000K Non Silver Microprismatic/Opal
FLN-DR120030-40K-SL-DALI 1200mm Directct 30w 3300LM 4000K DALI Silver Microprismatic/Opal
FLN-DR120030-30K-SL-DALI 1200mm Directct 30w 3300LM 3000K DALI Silver Microprismatic/Opal
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3300LM 4000K Non Silver Microprismatic/Opal
FLN-DR150030-30K-WH-Non 1500mm Directct 40w 4200LM 3000K Non White Microprismatic/Opal
FLN-DR150030-40K-WH-Non 1500mm Directct 40w 4200LM 4000K DALI White Microprismatic/Opal
FLN-DR150030-30K-WH-DALI 1500mm Directct 40w 4200LM 3000K DALI White Microprismatic/Opal
FLN-DR150030-40K-WH-DALI 1500mm Directct 40w 4200LM 4000K Non White Microprismatic/Opal
FLN-DR150030-30K-BL-Non 1500mm Directct 40w 4200LM 3000K Non Black Microprismatic/Opal
FLN-DR150030-40K-BL-Non 1500mm Directct 40w 4200LM 4000K DALI Black Microprismatic/Opal
FLN-DR150030-30K-BL-DALI 1500mm Directct 40w 4200LM 3000K DALI Black Microprismatic/Opal
FLN-DR150030-40K-BL-DALI 1500mm Directct 40w 4200LM 4000K Non Black Microprismatic/Opal
FLN-DR150030-30K-SL-Non 1500mm Directct 40w 4200LM 3000K Non Silver Microprismatic/Opal
FLN-DR150030-40K-SL-Non 1500mm Directct 40w 4200LM 4000K DALI Silver Microprismatic/Opal
FLN-DR150030-30K-SL-DALI 1500mm Directct 40w 4200LM 3000K DALI Silver Microprismatic/Opal
FLN-DR150030-40K-SL-DALI 1500mm Directct 40w 4200LM 4000K DALI Silver Microprismatic/Opal
FLN-ID120040-30K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K Non White Microprismatic/Opal
FLN-ID120040-40K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K Non White Microprismatic/Opal
FLN-ID120040-30K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K DALI White Microprismatic/Opal
FLN-ID120040-40K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K DALI White Microprismatic/Opal
FLN-ID120040-30K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K Non Black Microprismatic/Opal
FLN-ID120040-40K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K Non Black Microprismatic/Opal
FLN-ID120040-30K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K DALI Black Microprismatic/Opal
FLN-ID120040-40K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K DALI Black Microprismatic/Opal
FLN-ID120040-30K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K Non Silver Microprismatic/Opal
FLN-ID120040-40K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K Non Silver Microprismatic/Opal
FLN-ID120040-30K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 3000K DALI Silver Microprismatic/Opal
FLN-ID120040-40K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2800LM↓ 4000K DALI Silver Microprismatic/Opal
FLN-ID150050-30K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K Non White Microprismatic/Opal
FLN-ID150050-40K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K Non White Microprismatic/Opal
FLN-ID150050-30K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K DALI White Microprismatic/Opal
FLN-ID150050-40K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K DALI White Microprismatic/Opal
FLN-ID150050-30K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K Non Black Microprismatic/Opal
FLN-ID150050-40K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K Non Black Microprismatic/Opal
FLN-ID150050-30K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K DALI Black Microprismatic/Opal
FLN-ID150050-40K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K DALI Black Microprismatic/Opal
FLN-ID150050-30K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K Non Silver Microprismatic/Opal
FLN-ID150050-40K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K Non Silver Microprismatic/Opal
FLN-ID150050-30K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 3000K DALI Silver Microprismatic/Opal
FLN-ID150050-40K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3600LM↓ 4000K DALI Silver Microprismatic/Opal
FLN-DR120030-30K-WH-Non 1200mm Directct 30w 3000LM 3000K Non White Louvre/Grille
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3000LM 4000K Non White Louvre/Grille
FLN-DR120030-30K-WH-DALI 1200mm Directct 30w 3000LM 3000K DALI White Louvre/Grille
FLN-DR120030-40K-WH-DALI 1200mm Directct 30w 3000LM 4000K DALI White Louvre/Grille
FLN-DR120030-30K-BL-Non 1200mm Directct 30w 3000LM 3000K Non Black Louvre/Grille
FLN-DR120030-40K-BL-Non 1200mm Directct 30w 3000LM 4000K Non Black Louvre/Grille
FLN-DR120030-30K-BL-DALI 1200mm Directct 30w 3000LM 3000K DALI Black Louvre/Grille
FLN-DR120030-40K-BL-DALI 1200mm Directct 30w 3000LM 4000K DALI Black Louvre/Grille
FLN-DR120030-40K-SL-Non 1200mm Directct 30w 3000LM 4000K Non Silver Louvre/Grille
FLN-DR120030-30K-SL-Non 1200mm Directct 30w 3000LM 3000K Non Silver Louvre/Grille
FLN-DR120030-40K-SL-DALI 1200mm Directct 30w 3000LM 4000K DALI Silver Louvre/Grille
FLN-DR120030-30K-SL-DALI 1200mm Directct 30w 3000LM 3000K DALI Silver Louvre/Grille
FLN-DR120030-40K-WH-Non 1200mm Directct 30w 3000LM 4000K Non Silver Louvre/Grille
FLN-DR150030-30K-WH-Non 1500mm Directct 40w 4000LM 3000K Non White Louvre/Grille
FLN-DR150030-40K-WH-Non 1500mm Directct 40w 4000LM 4000K DALI White Louvre/Grille
FLN-DR150030-30K-WH-DALI 1500mm Directct 40w 4000LM 3000K DALI White Louvre/Grille
FLN-DR150030-40K-WH-DALI 1500mm Directct 40w 4000LM 4000K Non White Louvre/Grille
FLN-DR150030-30K-BL-Non 1500mm Directct 40w 4000LM 3000K Non Black Louvre/Grille
FLN-DR150030-40K-BL-Non 1500mm Directct 40w 4000LM 4000K DALI Black Louvre/Grille
FLN-DR150030-30K-BL-DALI 1500mm Directct 40w 4000LM 3000K DALI Black Louvre/Grille
FLN-DR150030-40K-BL-DALI 1500mm Directct 40w 4000LM 4000K Non Black Louvre/Grille
FLN-DR150030-30K-SL-Non 1500mm Directct 40w 4000LM 3000K Non Silver Louvre/Grille
FLN-DR150030-40K-SL-Non 1500mm Directct 40w 4000LM 4000K DALI Silver Louvre/Grille
FLN-DR150030-30K-SL-DALI 1500mm Directct 40w 4000LM 3000K DALI Silver Louvre/Grille
FLN-DR150030-40K-SL-DALI 1500mm Directct 40w 4000LM 4000K DALI Silver Louvre/Grille
FLN-ID120040-30K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K Non White Louvre/Grille
FLN-ID120040-40K-WH-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K Non White Louvre/Grille
FLN-ID120040-30K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K DALI White Louvre/Grille
FLN-ID120040-40K-WH-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K DALI White Louvre/Grille
FLN-ID120040-30K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K Non Black Louvre/Grille
FLN-ID120040-40K-BL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K Non Black Louvre/Grille
FLN-ID120040-30K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K DALI Black Louvre/Grille
FLN-ID120040-40K-BL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K DALI Black Louvre/Grille
FLN-ID120040-30K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K Non Silver Louvre/Grille
FLN-ID120040-40K-SL-Non 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K Non Silver Louvre/Grille
FLN-ID120040-30K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 3000K DALI Silver Louvre/Grille
FLN-ID120040-40K-SL-DALI 1200mm Directct/Indirect 40w 2000LM↑+2520LM↓ 4000K DALI Silver Louvre/Grille
FLN-ID150050-30K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K Non White Louvre/Grille
FLN-ID150050-40K-WH-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K Non White Louvre/Grille
FLN-ID150050-30K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K DALI White Louvre/Grille
FLN-ID150050-40K-WH-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K DALI White Louvre/Grille
FLN-ID150050-30K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K Non Black Louvre/Grille
FLN-ID150050-40K-BL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K Non Black Louvre/Grille
FLN-ID150050-30K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K DALI Black Louvre/Grille
FLN-ID150050-40K-BL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K DALI Black Louvre/Grille
FLN-ID150050-30K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K Non Silver Louvre/Grille
FLN-ID150050-40K-SL-Non 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K Non Silver Louvre/Grille
FLN-ID150050-30K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 3000K DALI Silver Louvre/Grille
FLN-ID150050-40K-SL-DALI 1500mm Directct/Indirect 50w 2400LM↑+3150LM↓ 4000K DALI Silver Louvre/Grille
