产品概览

Grammy 线性灯采用经典 louvre 格栅，营造和谐光环境。得益于独特 LED 光源与创新反射器的结合，辅以出众外观，上光采用蝙蝠翼配光，在实现优异照度的同时，将眩光控制在 UGR<16 以内。

产品特性

  • CCT：3000 / 4000 / 5000K
  • 调光：不可调 / 1-10V / DALI
  • 端盖颜色：银 / 白 / 黑
  • 质保：5 年

技术参数

  • 电压：AC220-240V
  • 尺寸：44*75mm

应用场景

  • 办公与教育（接待区、柜台）
  • 零售与酒店（酒店、餐厅）

安装方式

  • Grammy 线性灯

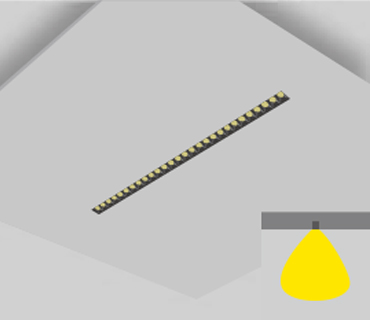

    无框嵌入式

  • Grammy 线性灯

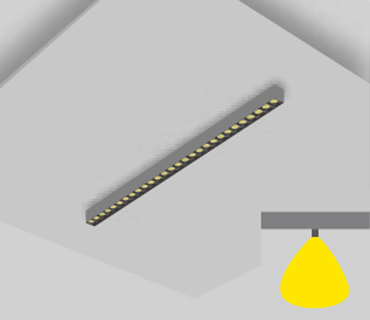

    吸顶式

  • Grammy 线性灯

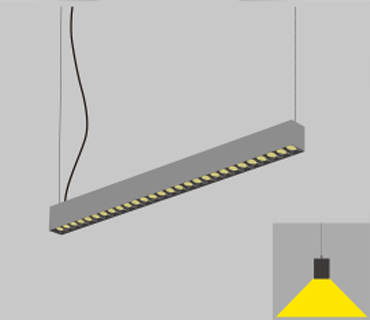

    吊装纯下打

  • Grammy 线性灯

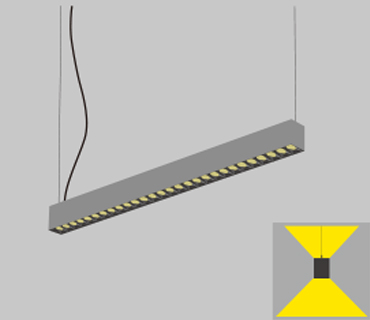

    吊装上下出光

产品筛选器

使用筛选器找到合适的产品系列，探索旗下具体款式

尺寸

请选择
  • 1146mm
  • 1526mm

分布

请选择
  • Direct
  • Direct/Indirect

功率

请选择
  • 30W
  • 40W
  • 50W

光通量

请选择
  • 3000LM↓
  • 1800LM↑+2200LM↓
  • 4000LM↓
  • 2200LM↑+2800LM↓

CCT

请选择
  • 3000K
  • 4000K
  • 5000K

调光

请选择
  • Non
  • DALI

颜色

请选择
  • White
  • Black
  • Sliver

反光罩

请选择
  • Louvre

项

产品 型号 尺寸 分布 功率 光通量 CCT 调光 颜色 反光罩 下载 预览
GM-DR120030-30K-WH-Non 1146mm Direct 30W 3000LM↓ 3000K Non White Louvre
GM-DR120030-40K-WH-Non 1146mm Direct 30W 3000LM↓ 4000K Non White Louvre
GM-DR120030-50K-WH-Non 1146mm Direct 30W 3000LM↓ 5000K Non White Louvre
GM-DR120030-30K-WH-DALI 1146mm Direct 30W 3000LM↓ 3000K DALI White Louvre
GM-DR120030-40K-WH-DALI 1146mm Direct 30W 3000LM↓ 4000K DALI White Louvre
GM-DR120030-50K-WH-DALI 1146mm Direct 30W 3000LM↓ 5000K DALI White Louvre
GM-DR120030-30K-BL-Non 1146mm Direct 30W 3000LM↓ 3000K Non Black Louvre
GM-DR120030-40K-BL-Non 1146mm Direct 30W 3000LM↓ 4000K Non Black Louvre
GM-DR120030-50K-BL-Non 1146mm Direct 30W 3000LM↓ 5000K Non Black Louvre
GM-DR120030-30K-BL-DALI 1146mm Direct 30W 3000LM↓ 3000K Non Black Louvre
GM-DR120030-40K-BL-DALI 1146mm Direct 30W 3000LM↓ 4000K Non Black Louvre
GM-DR120030-50K-SL-DALI 1146mm Direct 30W 3000LM↓ 5000K Non Black Louvre
GM-DR120030-30K-SL-Non 1146mm Direct 30W 3000LM↓ 3000K Non Sliver Louvre
GM-DR120030-40K-SL-Non 1146mm Direct 30W 3000LM↓ 4000K Non Sliver Louvre
GM-DR120030-50K-SL-Non 1146mm Direct 30W 3000LM↓ 5000K Non Sliver Louvre
GM-DR120030-30K-SL-DALI 1146mm Direct 30W 3000LM↓ 3000K Non Sliver Louvre
GM-DR120030-40K-SL-DALI 1146mm Direct 30W 3000LM↓ 4000K Non Sliver Louvre
GM-DR120030-50K-SL-DALI 1146mm Direct 30W 3000LM↓ 5000K Non Sliver Louvre
GM-ID120040-30K-WH-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non White Louvre
GM-ID120040-40K-WH-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non White Louvre
GM-ID120040-50K-WH-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non White Louvre
GM-ID120040-30K-WH-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K DALI White Louvre
GM-ID120040-40K-WH-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K DALI White Louvre
GM-ID120040-50K-WH-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K DALI White Louvre
GM-ID120040-30K-BL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Black Louvre
GM-ID120040-40K-BL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Black Louvre
GM-ID120040-50K-BL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Black Louvre
GM-ID120040-30K-BL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Black Louvre
GM-ID120040-40K-BL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Black Louvre
GM-ID120040-50K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Black Louvre
GM-ID120040-30K-SL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Sliver Louvre
GM-ID120040-40K-SL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Sliver Louvre
GM-ID120040-50K-SL-Non 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Sliver Louvre
GM-ID120040-30K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 3000K Non Sliver Louvre
GM-ID120040-40K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 4000K Non Sliver Louvre
GM-ID120040-50K-SL-DALI 1146mm Direct/Indirect 40W 1800LM↑+2200LM↓ 5000K Non Sliver Louvre
GM-DR150050-30K-WH-Non 1526mm Direct 40W 4000LM↓ 3000K Non White Louvre
GM-DR150050-40K-WH-Non 1526mm Direct 40W 4000LM↓ 4000K Non White Louvre
GM-DR150050-50K-WH-Non 1526mm Direct 40W 4000LM↓ 5000K Non White Louvre
GM-DR150050-30K-WH-DALI 1526mm Direct 40W 4000LM↓ 3000K DALI White Louvre
GM-DR150050-40K-WH-DALI 1526mm Direct 40W 4000LM↓ 4000K DALI White Louvre
GM-DR150050-50K-WH-DALI 1526mm Direct 40W 4000LM↓ 5000K DALI White Louvre
GM-DR150050-30K-BL-Non 1526mm Direct 40W 4000LM↓ 3000K Non Black Louvre
GM-DR150050-40K-BL-Non 1526mm Direct 40W 4000LM↓ 4000K Non Black Louvre
GM-DR150050-50K-BL-Non 1526mm Direct 40W 4000LM↓ 5000K Non Black Louvre
GM-DR150050-30K-BL-DALI 1526mm Direct 40W 4000LM↓ 3000K Non Black Louvre
GM-DR150050-40K-BL-DALI 1526mm Direct 40W 4000LM↓ 4000K Non Black Louvre
GM-DR150050-50K-SL-DALI 1526mm Direct 40W 4000LM↓ 5000K Non Black Louvre
GM-DR150050-30K-SL-Non 1526mm Direct 40W 4000LM↓ 3000K Non Sliver Louvre
GM-DR150050-40K-SL-Non 1526mm Direct 40W 4000LM↓ 4000K Non Sliver Louvre
GM-DR150050-50K-SL-Non 1526mm Direct 40W 4000LM↓ 5000K Non Sliver Louvre
GM-DR150050-30K-SL-DALI 1526mm Direct 40W 4000LM↓ 3000K Non Sliver Louvre
GM-DR150050-40K-SL-DALI 1526mm Direct 40W 4000LM↓ 4000K Non Sliver Louvre
GM-DR150050-50K-SL-DALI 1526mm Direct 40W 4000LM↓ 5000K Non Sliver Louvre
GM-ID150050-30K-WH-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non White Louvre
GM-ID150050-40K-WH-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non White Louvre
GM-ID150050-50K-WH-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non White Louvre
GM-ID150050-30K-WH-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K DALI White Louvre
GM-ID150050-40K-WH-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K DALI White Louvre
GM-ID150050-50K-WH-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K DALI White Louvre
GM-ID150050-30K-BL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Black Louvre
GM-ID150050-40K-BL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Black Louvre
GM-ID150050-50K-BL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Black Louvre
GM-ID150050-30K-BL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Black Louvre
GM-ID150050-40K-BL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Black Louvre
GM-ID150050-50K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Black Louvre
GM-ID150050-30K-SL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Sliver Louvre
GM-ID150050-40K-SL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Sliver Louvre
GM-ID150050-50K-SL-Non 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Sliver Louvre
GM-ID150050-30K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 3000K Non Sliver Louvre
GM-ID150050-40K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 4000K Non Sliver Louvre
GM-ID150050-50K-SL-DALI 1526mm Direct/Indirect 50W 2200LM↑+2800LM↓ 5000K Non Sliver Louvre
